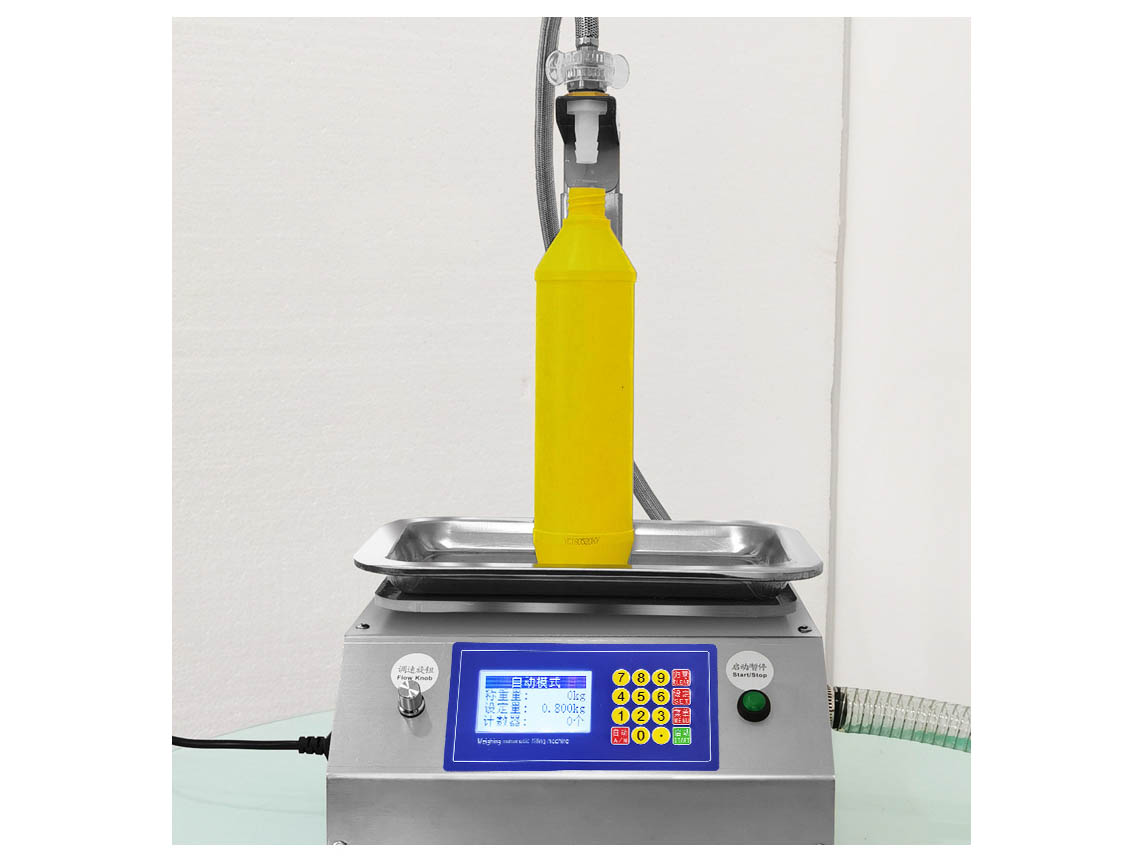

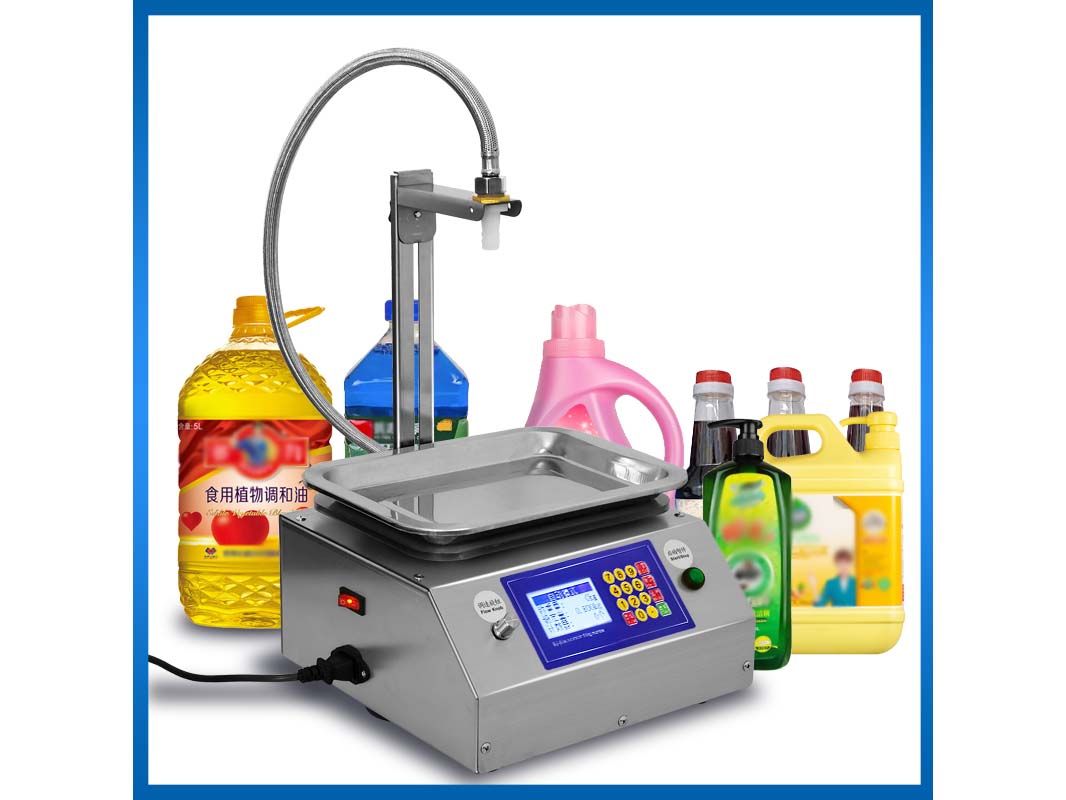

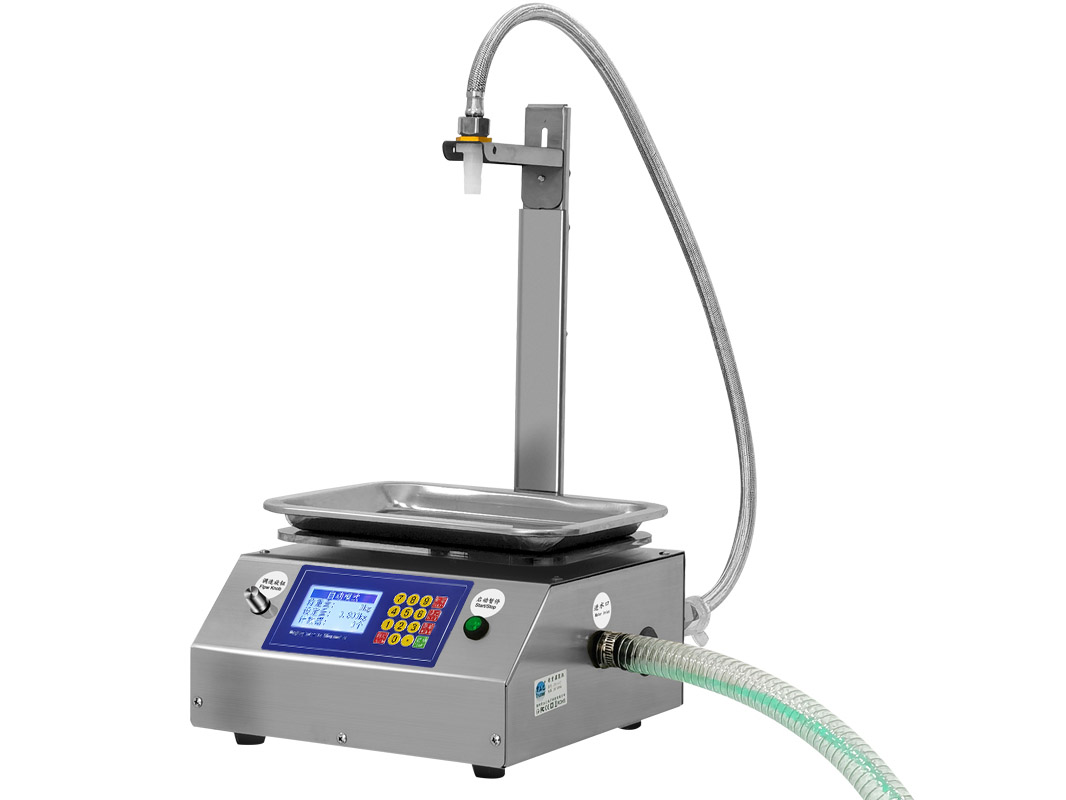

Product description of automatic liquid filling machine
The filling range of this machine is 30g-10kg
2. Usage: Used for filling liquids such as laundry detergent, dishwashing liquid, 84 disinfectant, toilet cleaner, edible oil, alcoholic beverages, pesticides, liquid fertilizers, etc
3. This machine can be equipped with an English panel, including an English manual, and can meet various specifications such as European, American, and British standards
4. High temperature resistance of 80 degrees Celsius, non corrosive liquid for fluororubber and PVC can be used
5. Flow rate: 17L/min for water, 12L/min for cooking oil, 9L/min for laundry detergent, 3L/min for dishwashing detergent
6.Diaphragm pump made of fluororubber material
The filling range of this machine is 30g-10kg
2. Usage: Used for filling liquids such as laundry detergent, dishwashing liquid, 84 disinfectant, toilet cleaner, edible oil, alcoholic beverages, pesticides, liquid fertilizers, etc
3. This machine can be equipped with an English panel, including an English manual, and can meet various specifications such as European, American, and British standards
4. High temperature resistance of 80 degrees Celsius, non corrosive liquid for fluororubber and PVC can be used
5. Flow rate: 17L/min for water, 12L/min for cooking oil, 9L/min for laundry detergent, 3L/min for dishwashing detergent
6.Diaphragm pump made of fluororubber material
Technical parameters of Fully automatic liquid filling machine
| Suggested filling quantity | 0.03-10 kg |
| Maximum weighing capacity | 15kg |
| Graduation value | 5g |
| Type of pump | Diaphragm pump |
| Maximum flow velocity | 17 L/ Minute |
| Filling error | <2-5 g |
| Bracket height | 0-40 cm adjustable |
| Pipe material | PVC steel wire hose |
| Pipe specifications | inner dia.19*outer dia.25 mm |
| Pipe length | 2 m |
| Machine size | 26*26*15 cm |
| Packing size | 35*35*35 cm |
| Weight after packaging | 8.8 Kg |
| Rated power | 200 W |
Product features and advantages of small liquid filling machine
1.Automatic weight reduction of empty bottles, automatic start stop, automatic speed reduction, automatic counting, automatic reset,
automatic data storage, power-off memory, adjustable delay, release detection, digital display control
2.LCD display screen, more beautiful, easier to operate, and more efficient

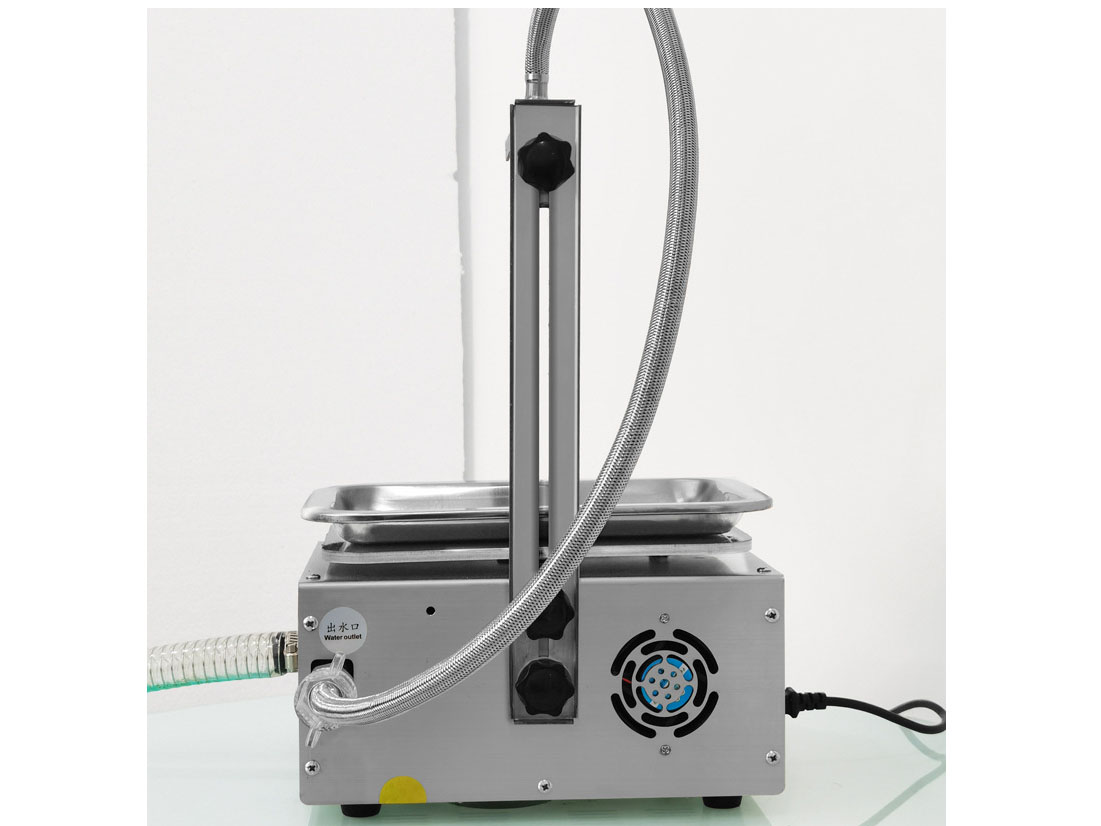

3.Sliding adjustable(0-40 cm) pipe support, anti drip material outlet
4.Easy to replace the pipe, high precision, no dripping or leakage
5.Manual and automatic operation modes, switchable
6.Automatic frequency conversion, high precision
When approaching the end, the speed will automatically decrease and stop automatically when the filling volume is reached
1.Automatic weight reduction of empty bottles, automatic start stop, automatic speed reduction, automatic counting, automatic reset,
automatic data storage, power-off memory, adjustable delay, release detection, digital display control
2.LCD display screen, more beautiful, easier to operate, and more efficient
3.Sliding adjustable(0-40 cm) pipe support, anti drip material outlet
4.Easy to replace the pipe, high precision, no dripping or leakage
5.Manual and automatic operation modes, switchable
6.Automatic frequency conversion, high precision
When approaching the end, the speed will automatically decrease and stop automatically when the filling volume is reached
