Product Application of liquid filling machine/Oil specific filling machine
1. Filling range: 0.02-5kg
2. Used for: various oils such as edible oil, engine oil, lubricating oil, etc
3. High temperature resistance of 100 degrees Celsius
4. Using brass gear pump, maximum flow rate: 12L/min
1. Filling range: 0.02-5kg
2. Used for: various oils such as edible oil, engine oil, lubricating oil, etc
3. High temperature resistance of 100 degrees Celsius
4. Using brass gear pump, maximum flow rate: 12L/min
Technical parameters of small oil filling machine
| Suggested filling quantity | 0.02-5 kg |
| Maximum weighing capacity | 8 kg |
| Graduation value | 2g |
| Type of pump | Gear pump |
| Maximum flow velocity | 12 L/ Minute |
| Filling error | <2 g |

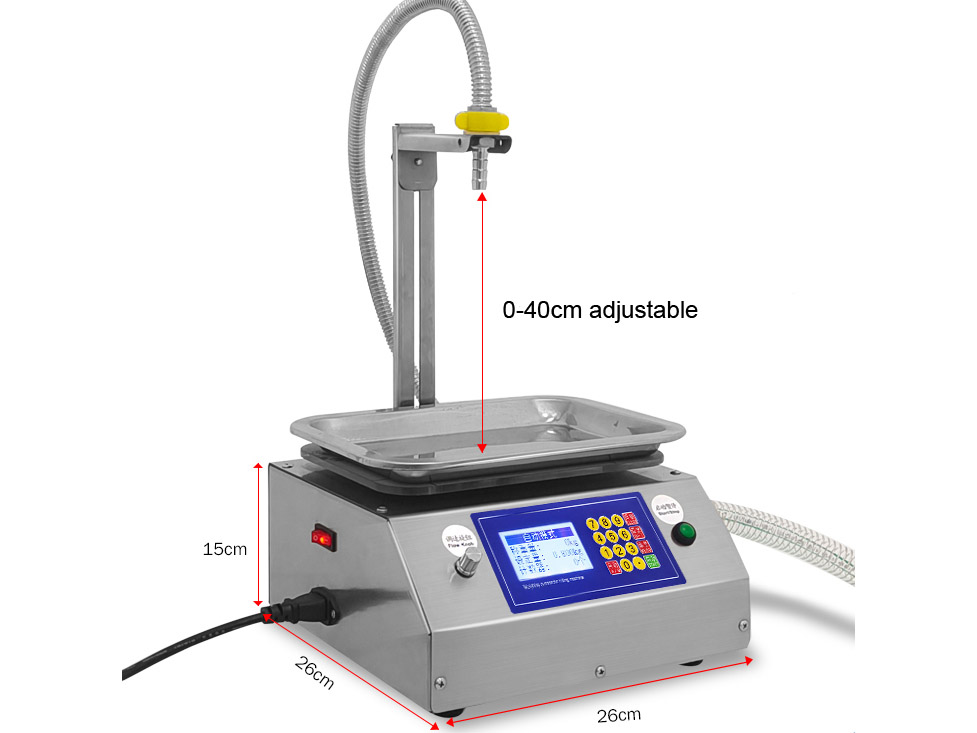

| Bracket height | 0-40 cm adjustable |
| Pipe material | PVC steel wire hose |
| Pipe specifications | 19*25 mm |
| Pipe length | 1.5 m |
| Machine size | 26*26*15 cm |
| Packing size | 35*35*35 cm |
| Weight after packaging | 8.8 Kg |
| Rated power | 200 W |
Product features and advantages of automatic oil filling machine
1.Automatic weight reduction of empty bottles, automatic start stop, automatic speed reduction, automatic counting, automatic reset,
automatic data storage, power-off memory, adjustable delay, release detection, digital display control
2.LCD display screen, more beautiful, easier to operate, and more efficient
3.Sliding adjustable(0-40 cm) pipe support, anti drip material outlet
4.Easy to replace the pipe, high precision, no dripping or leakage
1.Automatic weight reduction of empty bottles, automatic start stop, automatic speed reduction, automatic counting, automatic reset,
automatic data storage, power-off memory, adjustable delay, release detection, digital display control
2.LCD display screen, more beautiful, easier to operate, and more efficient
3.Sliding adjustable(0-40 cm) pipe support, anti drip material outlet
4.Easy to replace the pipe, high precision, no dripping or leakage
