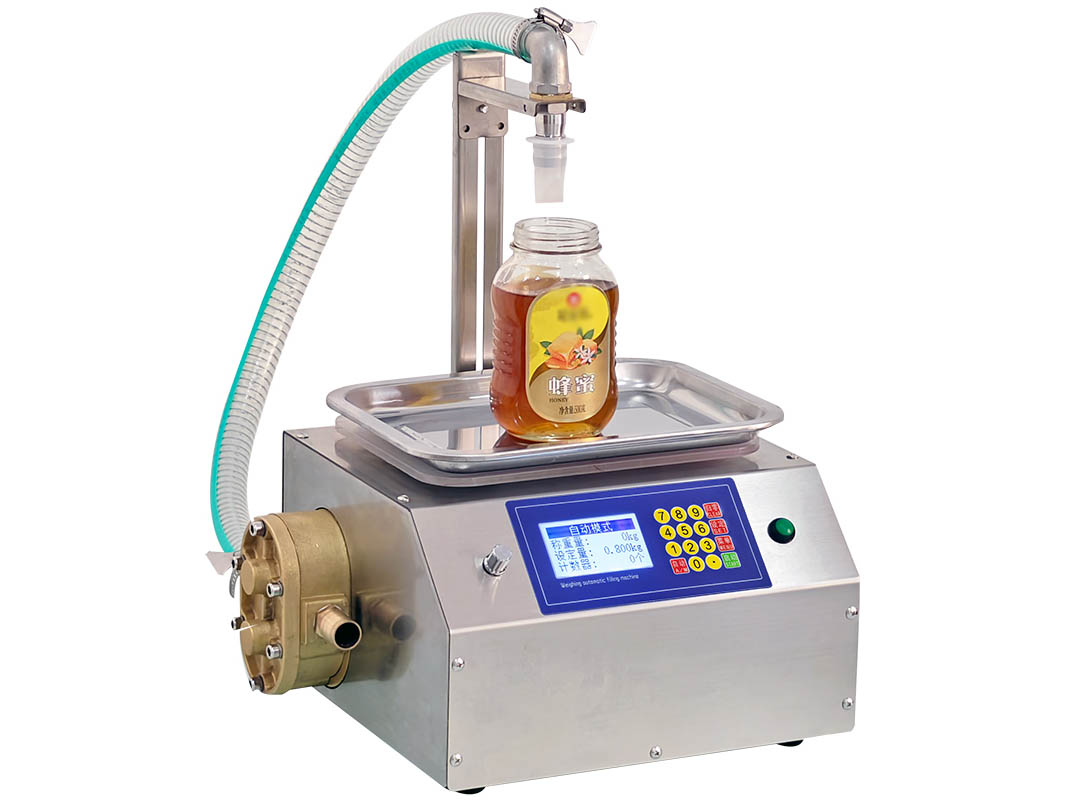

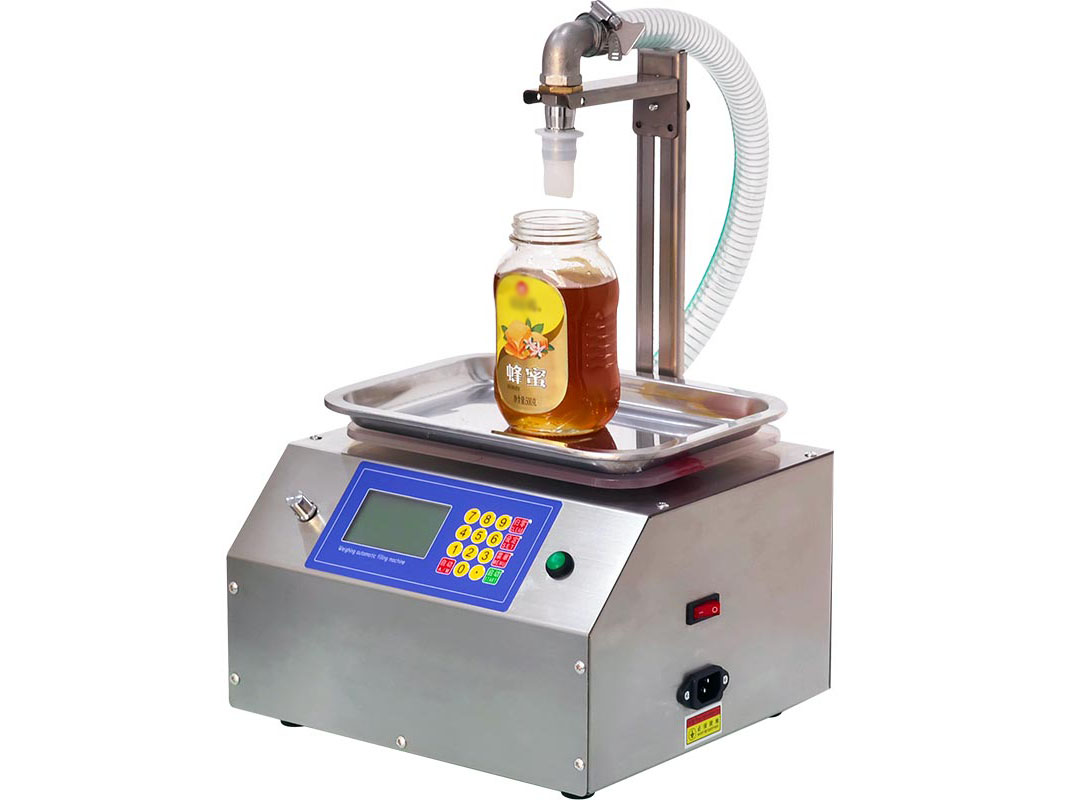

Product Application of viscous liquid honey filling machine
1. Recommended filling range: 0.02-8kg
2. Suitable for filling honey, sesame paste, various oils, adhesives, autumn pear paste, edible oil, sweet bean paste, chocolate sauce, lubricating oil, lubricating grease, bean paste, syrup and other pastes and viscous liquids
3. High temperature resistance, acid and alkali resistance, solvent resistance
4. Gear pump made of brass material, maximum flow rate: 7L/min
1. Recommended filling range: 0.02-8kg
2. Suitable for filling honey, sesame paste, various oils, adhesives, autumn pear paste, edible oil, sweet bean paste, chocolate sauce, lubricating oil, lubricating grease, bean paste, syrup and other pastes and viscous liquids
3. High temperature resistance, acid and alkali resistance, solvent resistance
4. Gear pump made of brass material, maximum flow rate: 7L/min
Technical parameters of Fully automatic viscous liquid honey filling machine
| Suggested filling quantity | 0.02-8 kg |
| Maximum weighing capacity | 10 kg |
| Graduation value | 2g |
| Type of pump | Gear pump |
| Maximum flow velocity | 7 L/ Minute |
| Filling error | <2 g |
| Bracket height | 0-40 cm adjustable |
| Pipe material | PVC steel wire hose |
| Pipe specifications | inner dia.19*outer dia.25 mm |
| Pipe length | 1.5 m |
| Machine size | 26*27*20 cm |
| Packing size | 40*35*35 cm |
| Weight after packaging | 14 Kg |
| Rated power | 200 W |

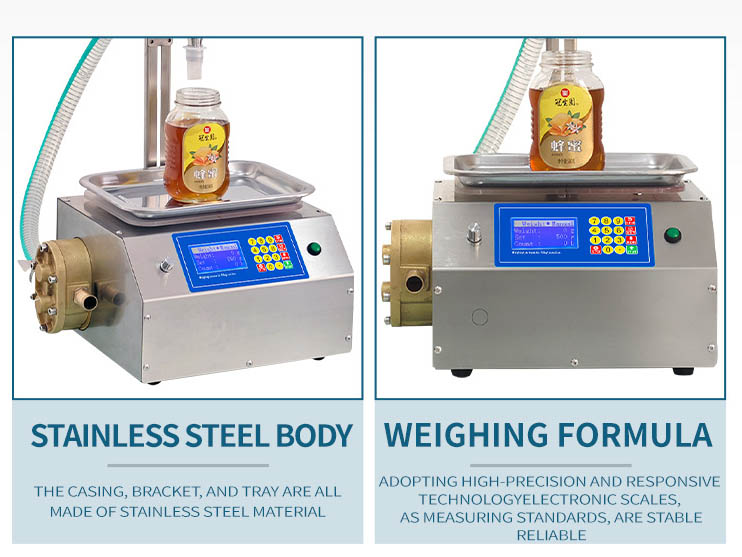

Product features and advantages of automatic honey filling machine
1.Automatic weight reduction of empty bottles, automatic start stop, automatic speed reduction, automatic counting, automatic reset,
automatic data storage, power-off memory, adjustable delay, release detection, digital display control

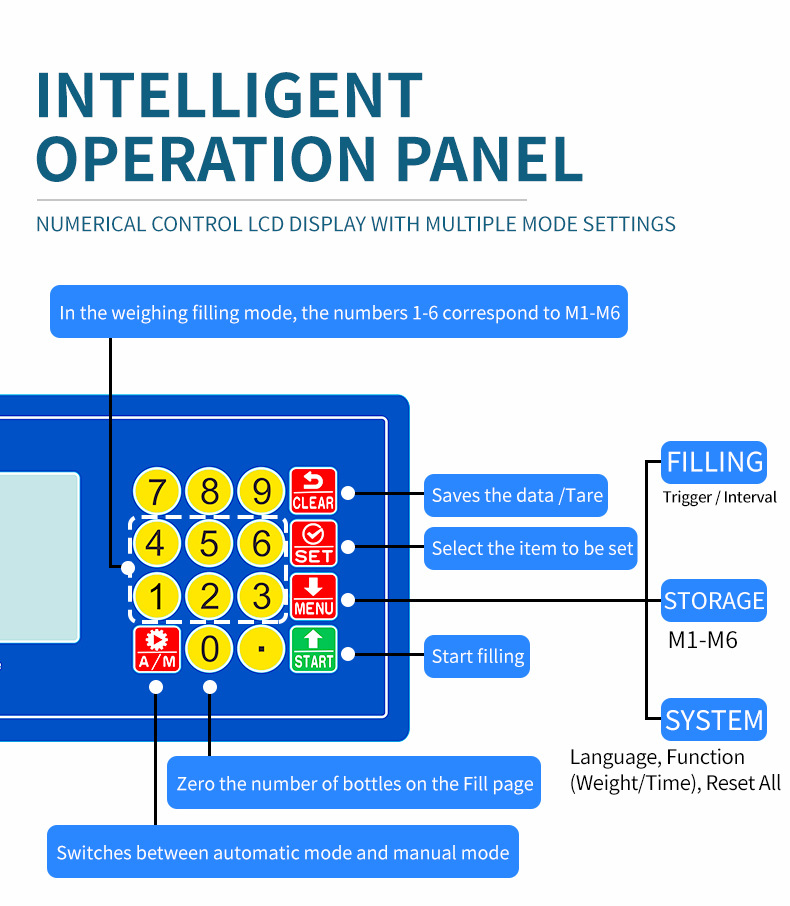

2.LCD display screen, more beautiful, easier to operate, and more efficient

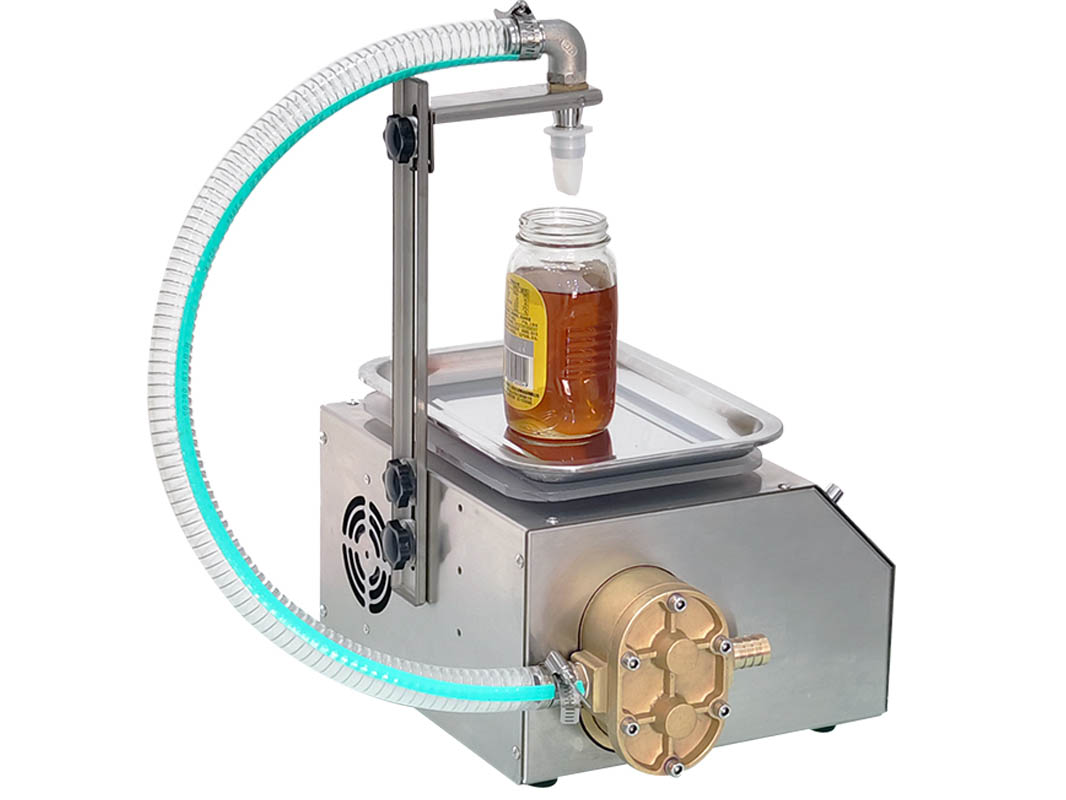

3.Sliding adjustable(0-40 cm) pipe support, anti drip material outlet
4.Easy to replace the pipe, high precision, no dripping or leakage
5.Manual and automatic operation modes, switchable
1.Automatic weight reduction of empty bottles, automatic start stop, automatic speed reduction, automatic counting, automatic reset,
automatic data storage, power-off memory, adjustable delay, release detection, digital display control
2.LCD display screen, more beautiful, easier to operate, and more efficient
3.Sliding adjustable(0-40 cm) pipe support, anti drip material outlet
4.Easy to replace the pipe, high precision, no dripping or leakage
5.Manual and automatic operation modes, switchable
