Product description of liquid filling machine
1.The filling range of this machine is 30g-30kg
2. Usage: Used for filling liquids such as alcohol, water, beverages, laundry detergent, dishwashing detergent, 84 disinfectant, toilet cleaner, edible oil, pesticides, liquid fertilizers, etc
3. Independent weighing platform, separated design, more flexible in use
4. The regular version of the machine uses a diaphragm pump made of fluororubber material, with a maximum pumping flow rate of 36L/min
1.The filling range of this machine is 30g-30kg
2. Usage: Used for filling liquids such as alcohol, water, beverages, laundry detergent, dishwashing detergent, 84 disinfectant, toilet cleaner, edible oil, pesticides, liquid fertilizers, etc
3. Independent weighing platform, separated design, more flexible in use
4. The regular version of the machine uses a diaphragm pump made of fluororubber material, with a maximum pumping flow rate of 36L/min
Technical parameters of L36 automatic liquid filling machine
| Suggested filling quantity | 0.05-30 kg |
| Maximum weighing capacity | 30 kg |
| Graduation value | 5g |
| Type of pump | Diaphragm pump |
| Maximum flow velocity | 36 L/ Minute |
| Filling error | <5 g |
| Bracket height | 0-40 cm adjustable |
| Pipe material | PVC steel wire hose |
| Pipe specifications | inner dia.25*outer dia.31 mm |
| Pipe length | 2 m |
| Machine size | 26*26*15 cm |
| Packing size | 35*35*35 cm |
| Weight after packaging | 13 Kg |
| Rated power | 300 W |
Product features and advantages of large flow liquid filling machine
1.Automatic weight reduction of empty bottles, automatic start stop, automatic speed reduction, automatic counting, automatic reset,
automatic data storage, power-off memory, adjustable delay, release detection, digital display control
2.Sliding adjustable(0-40 cm) pipe support, anti drip material outlet
3.Easy to replace the pipe, high precision, no dripping or leakage
4.Manual and automatic operation modes, switchable
5.Automatic frequency conversion, high precision
When approaching the end, the speed will automatically decrease and stop automatically when the filling volume is reached

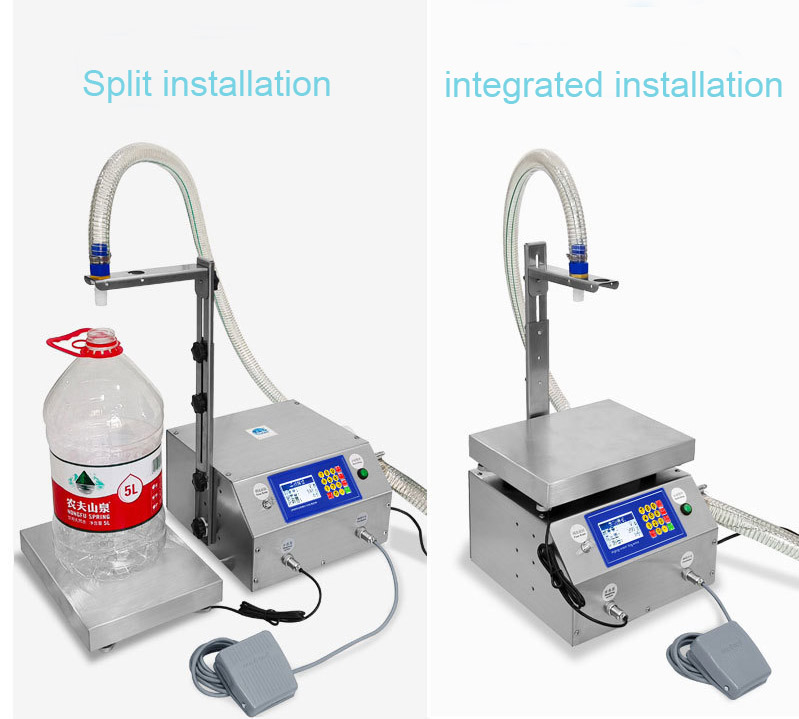

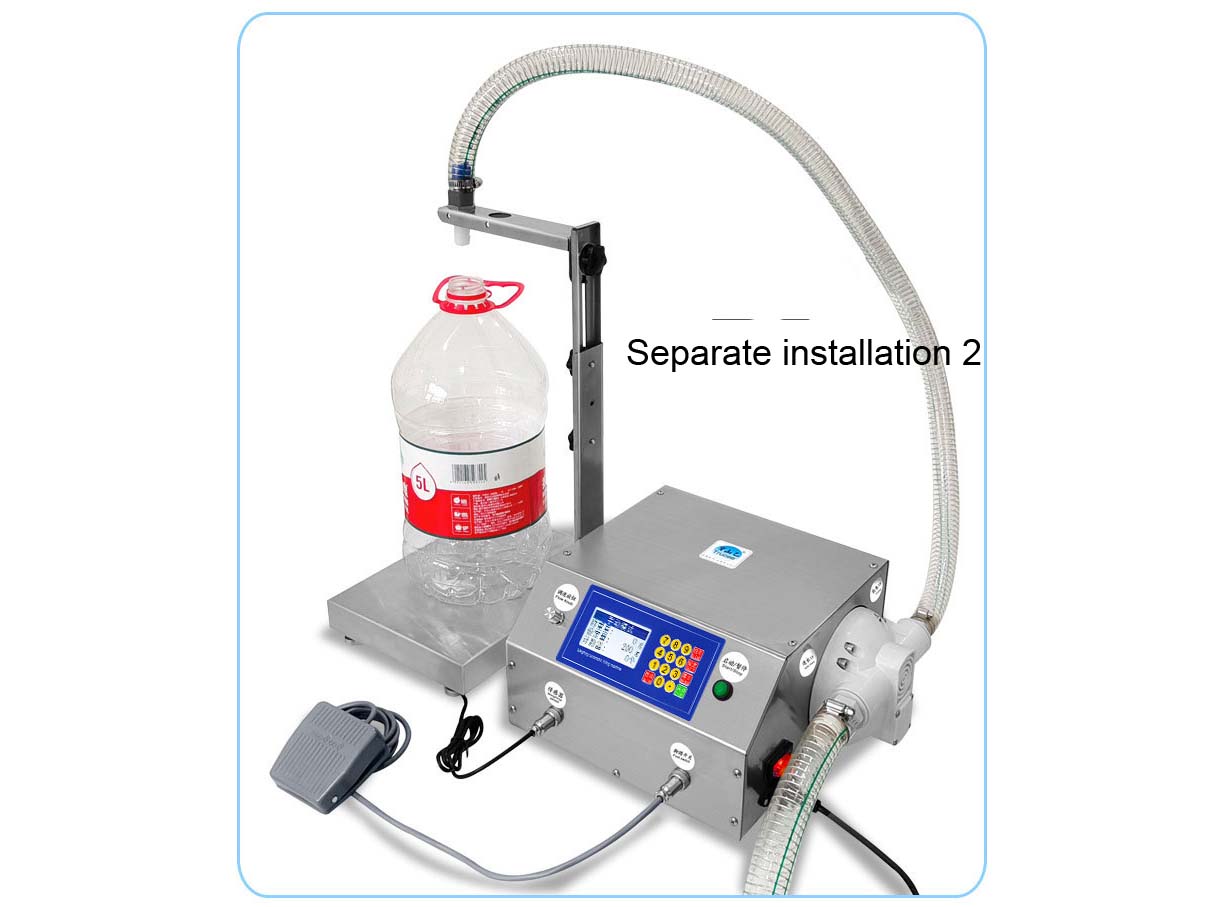

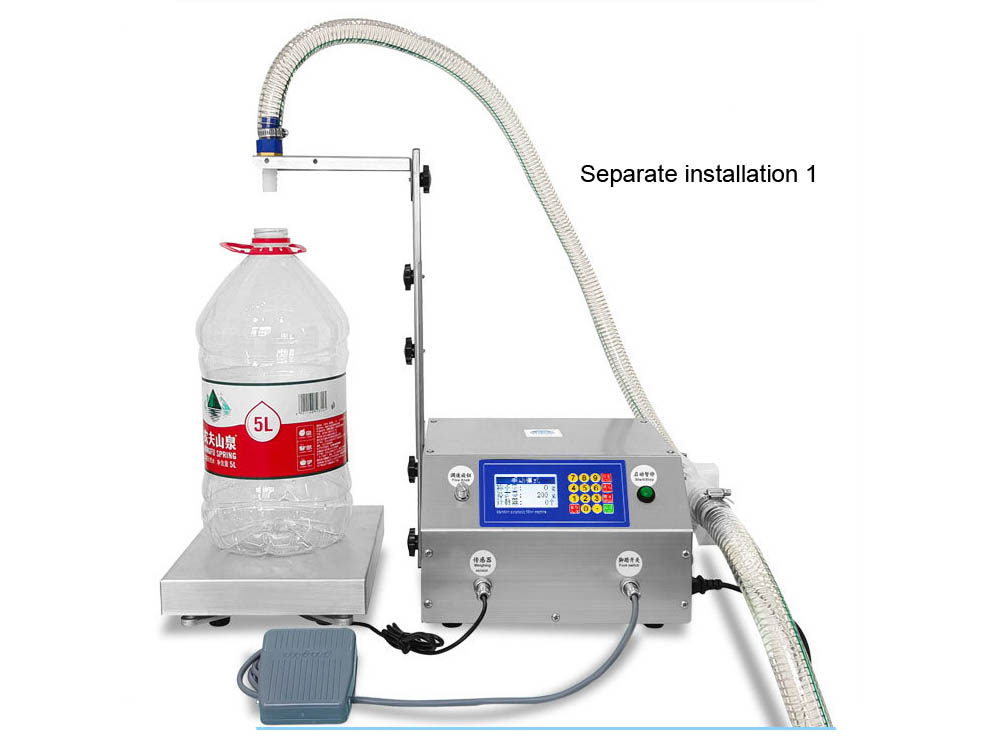

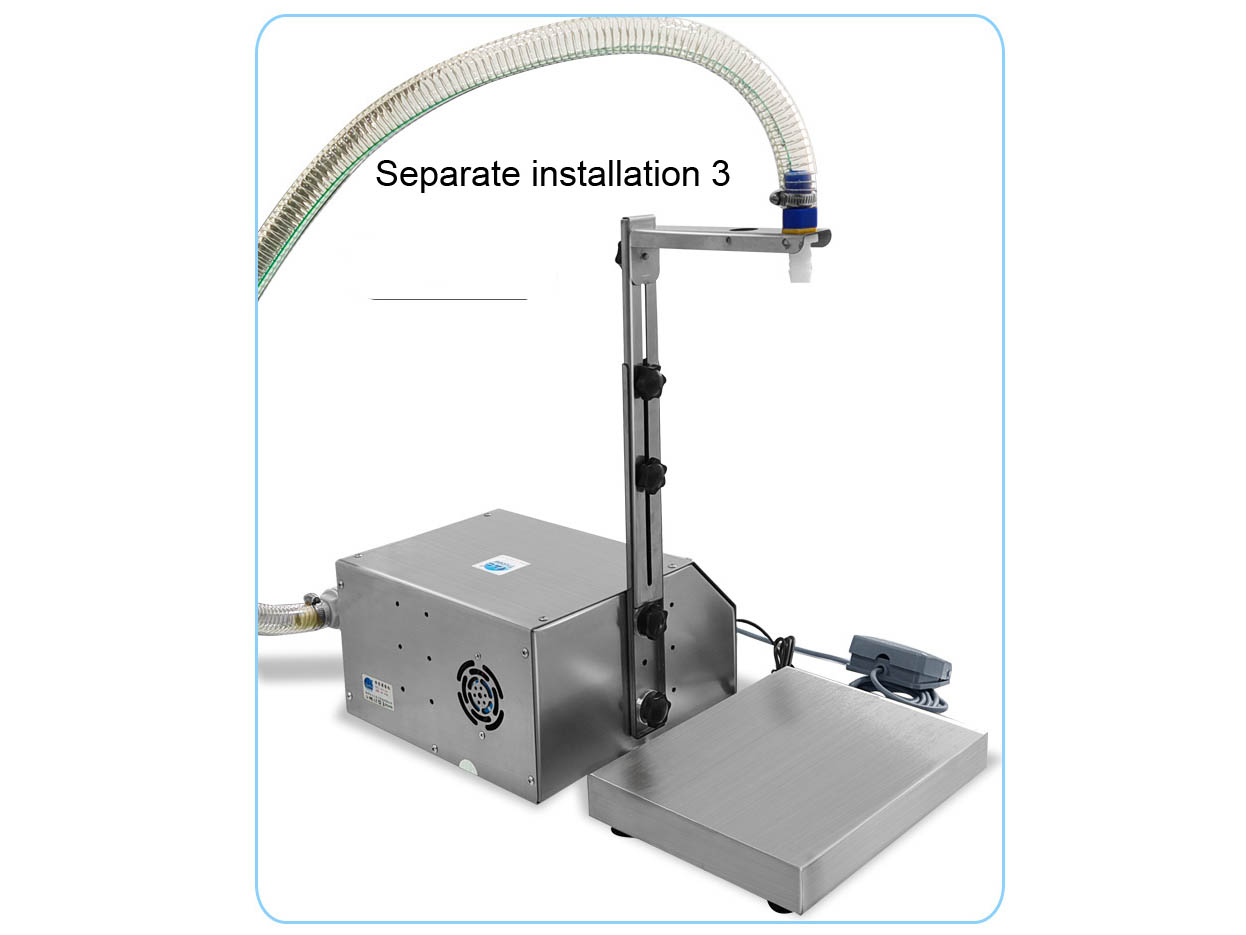

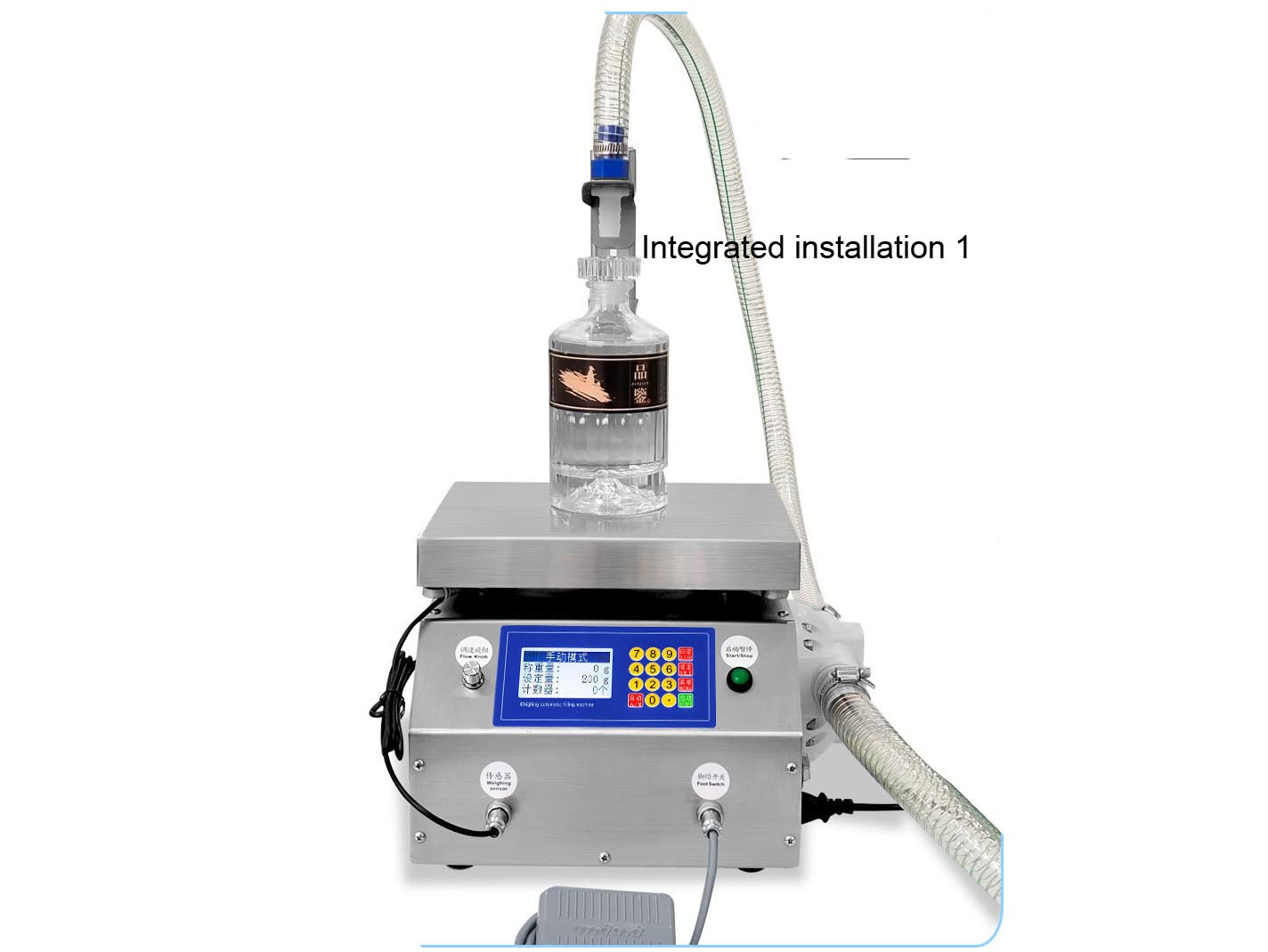

6.You can choose between split installation or integrated installation based on the size and style of the empty bottle
1.Automatic weight reduction of empty bottles, automatic start stop, automatic speed reduction, automatic counting, automatic reset,
automatic data storage, power-off memory, adjustable delay, release detection, digital display control
2.Sliding adjustable(0-40 cm) pipe support, anti drip material outlet
3.Easy to replace the pipe, high precision, no dripping or leakage
4.Manual and automatic operation modes, switchable
5.Automatic frequency conversion, high precision
When approaching the end, the speed will automatically decrease and stop automatically when the filling volume is reached
6.You can choose between split installation or integrated installation based on the size and style of the empty bottle
