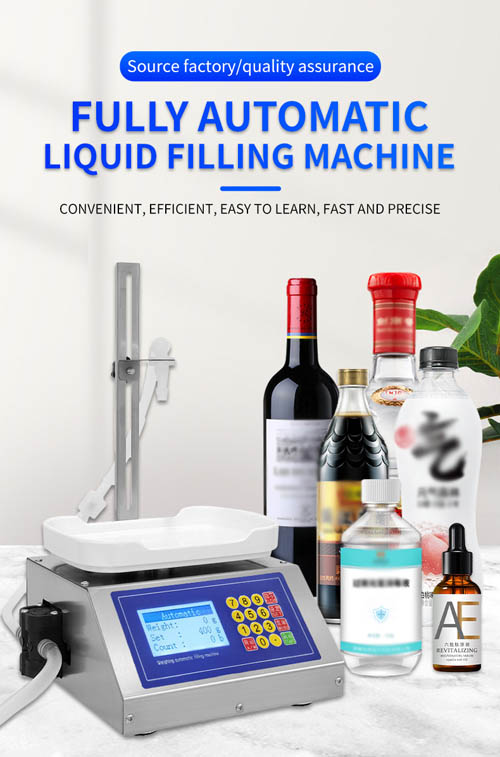

Product Application of automatic weighing liquid packaging and filling machine
1. Filling range: 8-1000g
2. Suitable for: various types of alcohol, beverages, soy sauce and vinegar, medicines, pesticides, liquid fertilizers, small bottles of edible oil, etc
3. Diluents that can withstand high temperatures of 60 degrees Celsius and cannot corrode rubber and silicone can be applied to this machine
4. This machine uses a diaphragm pump with a maximum pumping flow rate of 3200ml/min
5. Reference flow rate: It takes 10 seconds to fill 500g of water, 20 seconds for 500g of cooking oil, and 30 seconds for 500g of dishwashing detergent
1. Filling range: 8-1000g
2. Suitable for: various types of alcohol, beverages, soy sauce and vinegar, medicines, pesticides, liquid fertilizers, small bottles of edible oil, etc
3. Diluents that can withstand high temperatures of 60 degrees Celsius and cannot corrode rubber and silicone can be applied to this machine
4. This machine uses a diaphragm pump with a maximum pumping flow rate of 3200ml/min
5. Reference flow rate: It takes 10 seconds to fill 500g of water, 20 seconds for 500g of cooking oil, and 30 seconds for 500g of dishwashing detergent
Technical Specifications of Small intelligent liquid filling machine
| Suggested filling quantity | 8-1000 g |
| Maximum weighing capacity | 3kg |
| Graduation value | 1g |
| Type of pump | Diaphragm pump pump |
| Maximum flow velocity | 3.2 L/ Minute |
| Filling error | <1g |

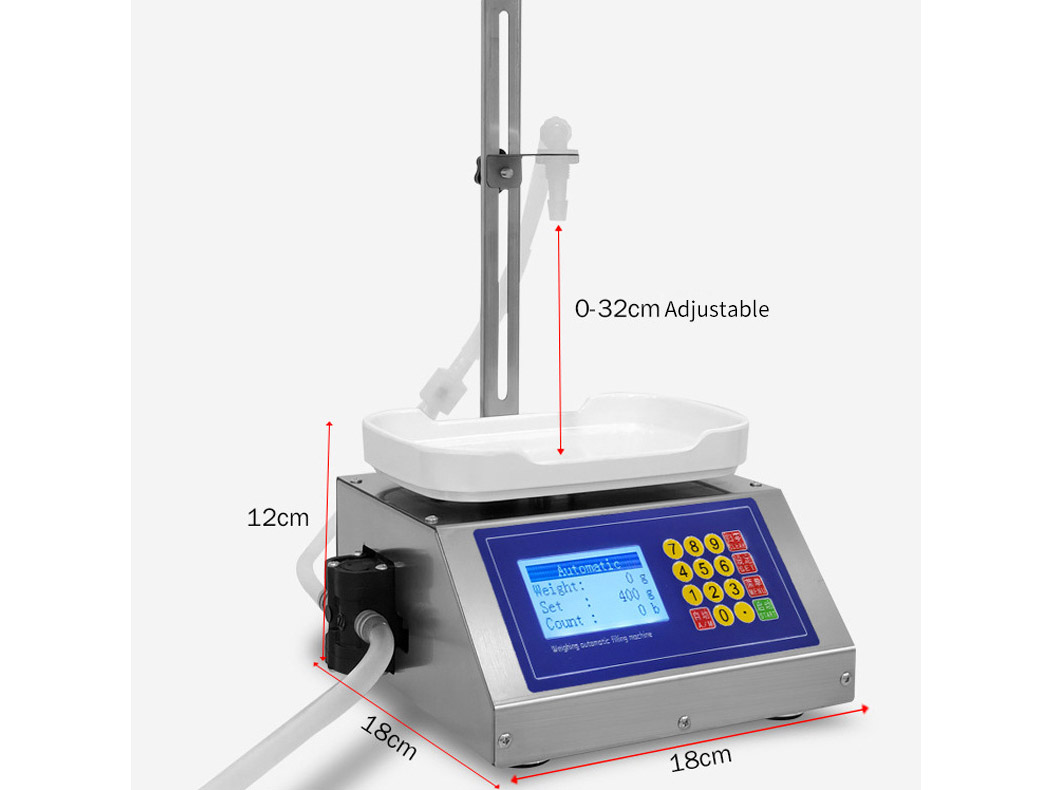

| Bracket height | 0-32 cm adjustable |
| Pipe material | Silicone tube |
| Pipe specifications | 7*10mm |
| Pipe length | 2 m |
| Machine size | 18*18*12 cm |
| Packing size | 35*23*19 cm |
| Weight after packaging | 2.7 Kg |
| Rated power | 30 W |
The advantages of automatic weighing liquid packaging and filling machine
1. Efficient and convenient, automatic weighing
2. Anti drip design, precise filling
3. Easy to operate, sliding bracket, adjustable height up and down for using different bottles
1. Efficient and convenient, automatic weighing
2. Anti drip design, precise filling
3. Easy to operate, sliding bracket, adjustable height up and down for using different bottles
